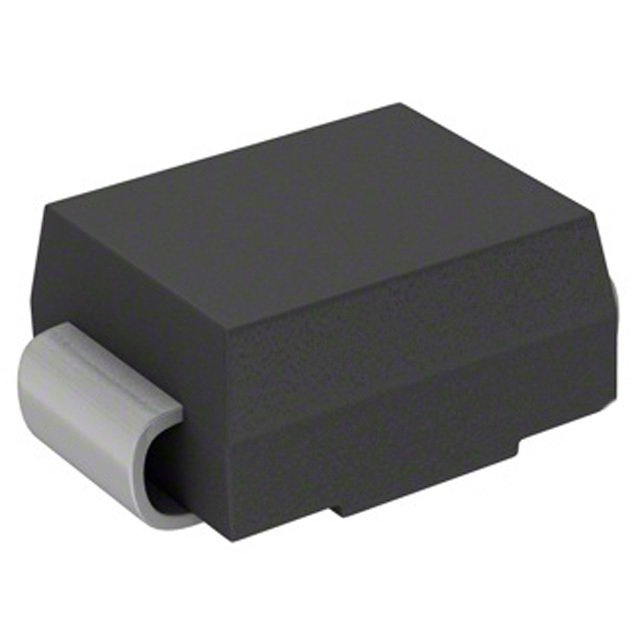

Image is for your reference only,please check specifications for details

PLED6S - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC21761969
Category:
Thyristor
Package:
DO-214AA
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE PLED6S TVS Thyristor, Surge Protector, PLED Series, 1.2V, 1A, DO-214AA, 2Pins, -40℃
Stock Locations:
Availability:
9,070 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PLED6S is an Open LED Protector provides a switching electronic shunt path when a LED in a LED string fails as an open circuit. This ensures that the remaining string of LEDs will continue to function if a single LED does not. The device was designed to enable higher reliability in outdoor. Compatible with one, two and three watt LEDs that have a nominal 3V forward characteristic.
Fast switching
Automatically resets after power cycle
Compatible with industrial lighting environments
Compatible with PWM frequencies up to 30kHz

Show

PLED6S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Operating Voltage	6 V
Breakdown Voltage	6 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Holding Current	5 mA
Clamping Voltage	16 V
Max Breakdown Voltage	16 V
Holding Current (Max)	5 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Height	2.25 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
