Description

The PLT09H series lead type Common Mode Choke Coil suitable for noise suppression of SW power supply, DC-DC converter and DC power lines in AC adapter of Portable equipment applications.
Wide frequency ranging from a few MHz to several 100MHz
Low-profile design

Show

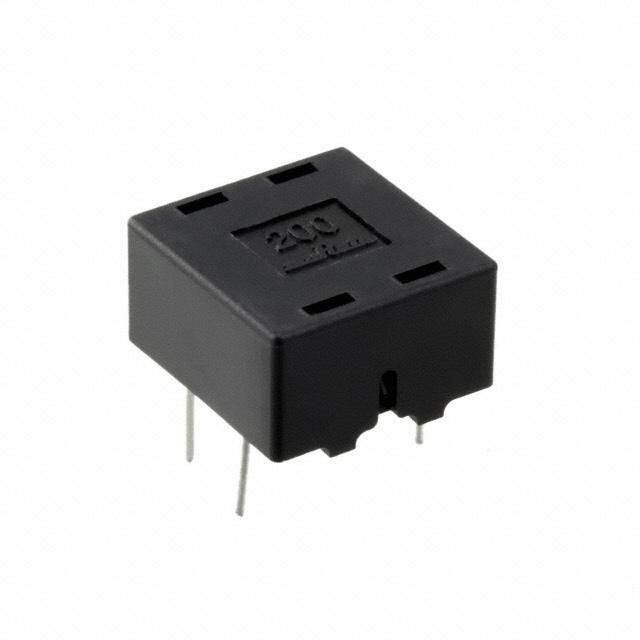

PLT09HN2003R0P1B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Through Hole
Voltage Rating (DC)	50 V
Current Rating	3 A
Inductance	20 µH
Shielding	No
DC Resistance (DCR)	0.03 Ω
Current Rating (Max)	3 A
Current Rating (DC)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 VDC
Resistance (DC Max)	30 mΩ
	Show
Size-Length	14 mm
Size-Width	13 mm
Size-Height	8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
