Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 8 Pin |

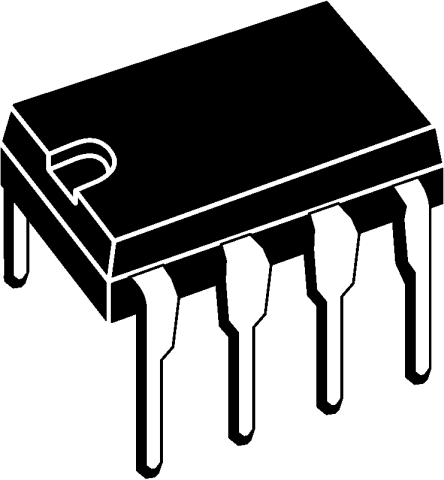

Case/Package | DIP-8 |
Rise/Fall Time | 60 ns |
Number of Channels | 1 Channel |
Number of Positions | 8 Position |
Forward Voltage | 1.5 V |
Input Current | 16.0 mA |
Power Dissipation | 0.25 W |
Rise Time | 60 ns |
Isolation Voltage | 5000 Vrms |
Forward Current | 25 mA |
Input Current (Min) | 25 mA |
Reverse Breakdown Voltage | 5 V |
Maximum Forward Voltage (Max) | 1.8 V |
Forward Current (Max) | 25 mA |
Fall Time | 0.06 µs |
Fall Time (Max) | 60 ns |
Fall Time (Max) | 60 ns |
Operating Temperature (Max) | 100 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 250 mW |
Supply Voltage | 15V ~ 30V |
Show | |
Size-Width | 6.86 mm |
Size-Height | 3.94 mm |
Operating Temperature | -40℃ ~ 100℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
