Description

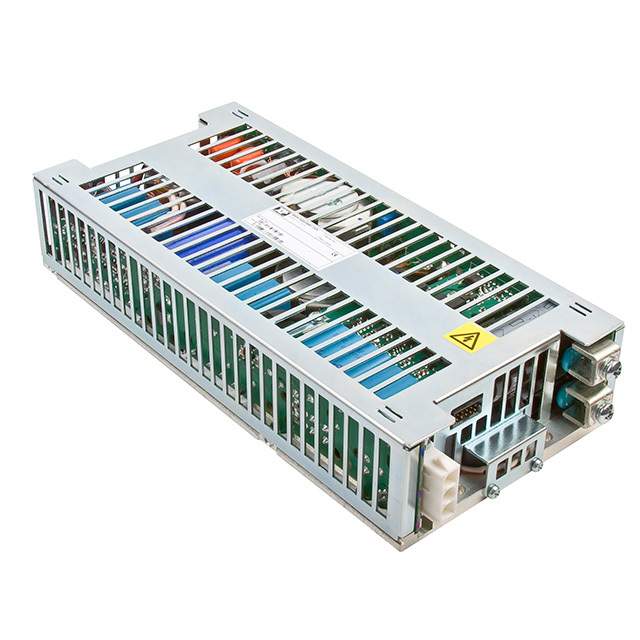

The CCH series has been designed for use in electronic systems which need to operate in the harshest of environments. These electronic systems are typically sealed to protect them from the elements, thus making thermal management very challenging. The CCH power supplies are designed with the heat generating components directly attached to a baseplate which allows conducted heat to be easily passed from the equipment through a heatsink to the outside environment. This AC-DC single output product family, fitted with a 5V standby rail and interface signals also features efficiencies in excess of 90%. The discrete design of the CCH allows for all heat dissipating components to be connected to the baseplate, optimising efficiency and resulting in a very compact 8.4" (214mm) x 4" (102mm) x 1.69" (43mm) package and smaller heatsinking requirements. The addition of MIL-STD-461 EMC and MIL-STD-810 shock and vibration requirements mean that the product is suitable not only for a wide range of In
400W Baseplate Cooled
Compact 8.4" (214mm) x 4" (102mm) x 1.69" (43mm) Package
High Efficiency, up to 90%
Baseplate Operating Temperature -40°C to 85°C
No Fan, Quiet Operation
MIL-STD-461 EMC
MIL-STD-810F Shock & Vibration
Remote Sense
5V Standby Output
Remote On/Off & AC OK Signal
Current Share for Parallel Operation
Overtemperature Warning/Shutdown

Show

CCH400PS24 Specifications
