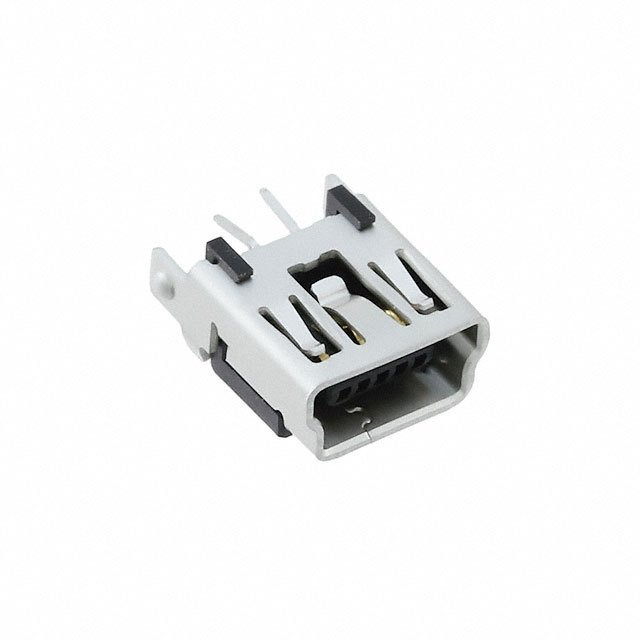

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Use the usb type b 5000750517 audio and video connector from Molex for your design to run audio and video. This RCP connector"s 5 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 30 VDC|30VAC. Its pitch is 1.6 mm. It has a receptacle type gender. This device has a maximum current rating of 1 A/contact. 5000750517 is housed in thermoplastic. The item will be shipped in tray orientation. This product is 7.7 mm long, 7.7 mm tall and 4.7 mm deep. Its 5 terminals use the solder termination method. This part has an operating temperature range of 0 °C to 50 °C.
5000750517 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 800 µm |
| Number of Contacts | 5 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 1.00 A |
| Insulation Resistance | 100 MΩ |
| Halogen Free Status | Not Low Halogen |
| Orientation | Vertical |
| Number of Circuits | 5 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 5 Position |
| Current Rating (Max) | 1A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 30VAC, 30VDC |
| Show | |
| Size-Length | 7.70 mm |
| Size-Width | 7.70 mm |
| Size-Height | 7.7 mm |
| Mated Height | 950 µm |
| Housing Color | Black |
| Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 85℃ |
| Housing Material | Plastic |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
