Description

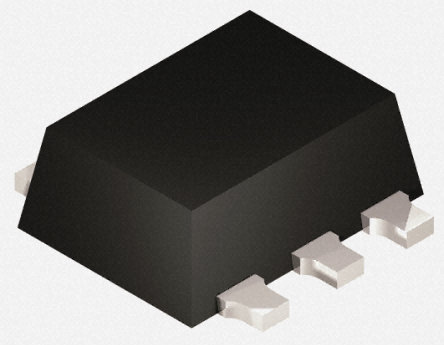

The PMDT290UNE is a dual N-channel enhancement-mode FET in an ultra small and flat lead surface-mount plastic package using Trench MOSFET technology. It is suitable for relay driver, high-speed line driver, low-side load-switch and switching circuit applications.
Very fast switching characteristics
ESD protection up to 2kV

Show

PMDT290UNE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-666
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.29 Ω
Polarity	Dual N-Channel
Power Dissipation	500 mW
Threshold Voltage	750 mV
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	0.8A
Input Capacitance (Ciss)	55pF @10V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.09 W
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
