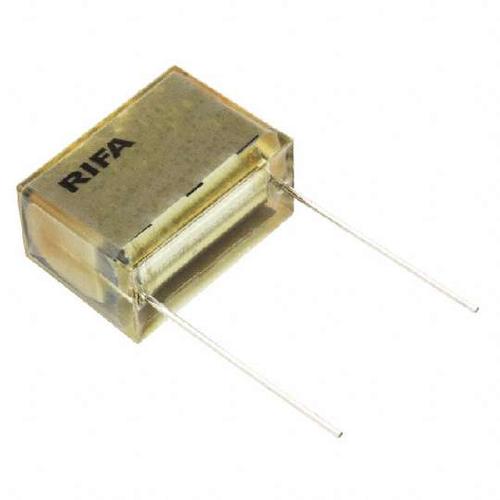

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PME271M series capacitors from Kemet are radial leaded, class X2 metalized impregnated paper film capacitors for AC Line EMI suppression and RC networks. These capacitors are made of multilayer metalized paper encapsulated and impregnated in self extinguishing material meeting the requirements of UL94 V-0 standard. The impregnated paper ensures excellent stability and reliability properties, particularly in applications with continuous operation. Typical applications include worldwide use as an electromagnetic interference suppressor in all X2 and across the line applications.
Capacitance values ranges from 0.001µF to 0.6µF
Voltage rating is 275VAC at 50/60Hz
Lead spacing of 10.2mm to 25.4mm
Capacitance tolerance is ±20% for C
Operating temperature range from -40˚C to 110˚C
ENEC, UL, cUL approved
100% screening factory test at 2150VDC
Highest possible safety regarding active and passive flammability
Excellent self healing properties
High dV/dt capability

Show

PME271M660KR30 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	25.4 mm
Voltage Rating (DC)	275 V
Voltage Rating (AC)	275 V
Capacitance	0.6 µF
Capacitance Tolerance	±10 %
Part Family	PME271M
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	30.5 mm
Size-Width	15.3 mm
Size-Height	22 mm
Lead Length	30 mm
Dielectric Material	Paper
Operating Temperature	-40℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8532250010
ECCN Code	EAR99
