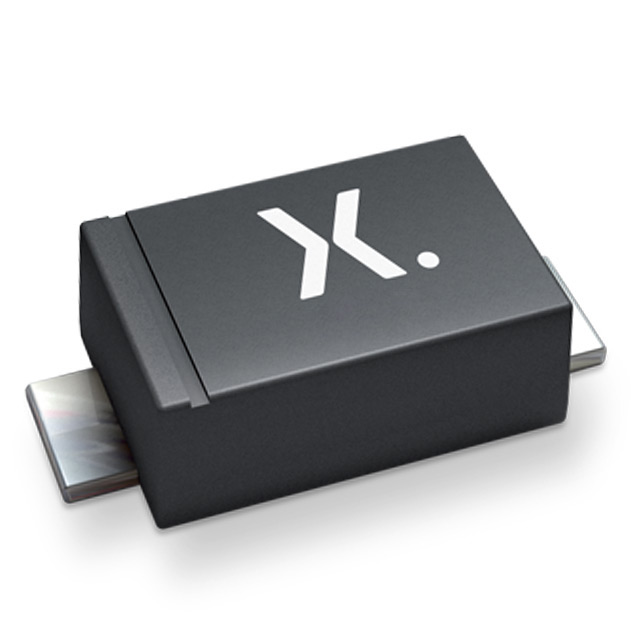

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PMEG10020AELR is a low leakage current planar maximum efficiency general application (MEGA) Schottky Barrier Rectifier with an integrated guard ring for stress protection. It is encapsulated in a small and flat lead surface-mounted device (SMD) plastic package.
High power capability due to clip-bonding technology
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption
Low forward voltage
AEC-Q101 qualified

Show

PMEG10020AELRX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Number of Positions	2 Position
Forward Voltage	770mV @2A
Power Dissipation	680 mW
Reverse recovery time	5 ns
Forward Current	2830 mA
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	770 mV
Forward Current (Max)	2830 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Power Dissipation (Max)	2140 mW
	Show
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status
