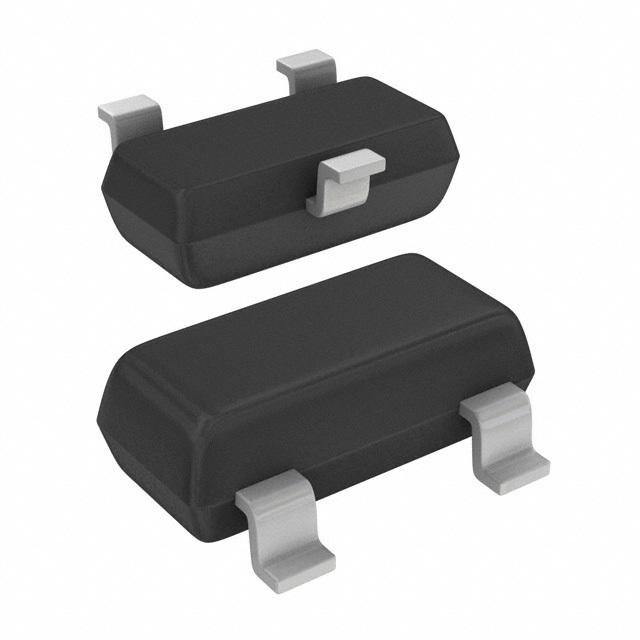

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 60V 3.1A (Ta) 478mW (Ta), 8.36W (Tc) Surface Mount TO-236AB
PMV55ENEAR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.046 Ω |
| Power Dissipation | 1.19 W |
| Threshold Voltage | 1.7 V |
| Input Capacitance | 450 pF |
| Drain to Source Voltage (Vds) | 60 V |
| Rise Time | 13 ns |
| Input Capacitance (Ciss) | 646pF @30V(Vds) |
| Fall Time | 13 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 478mW (Ta), 8.36W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ECCN Code | EAR99 |
