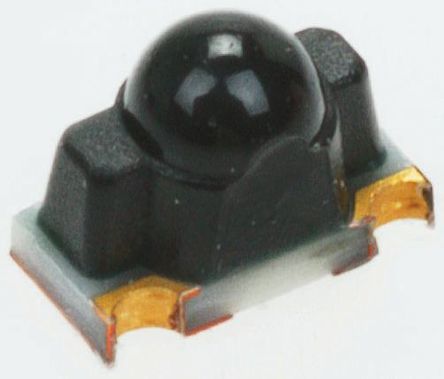

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PT100MF0MP1 is a 2-pin surface mount Opaque Resin Phototransistor made of plastic mold with visible light cut-off (black) lens. It features 910nm typical peak sensitivity wavelength, ±15° typical narrow directivity angle and 30° viewing angle.
- Top view mount direction
PT100MF0MP1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD-2 |
| Output Current | ≤20.0 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 2 Position |
| Wavelength | 910 nm |
| Viewing Angle | 30° |
| Peak Wavelength | 910 nm |
| Polarity | NPN |
| Power Dissipation | 75 mW |
| Power Consumption | 75 mW |
| Rise Time | 5 µs |
| Breakdown Voltage (Collector to Emitter) | 35 V |
| Input Power (Max) | 75 mW |
| Fall Time | 6 µs |
| Fall Time (Max) | 6000 ns |
| Fall Time (Max) | 5000 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Power Dissipation (Max) | 75 mW |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.5 mm |
| Size-Height | 2.2 mm |
| Operating Temperature | -30℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
