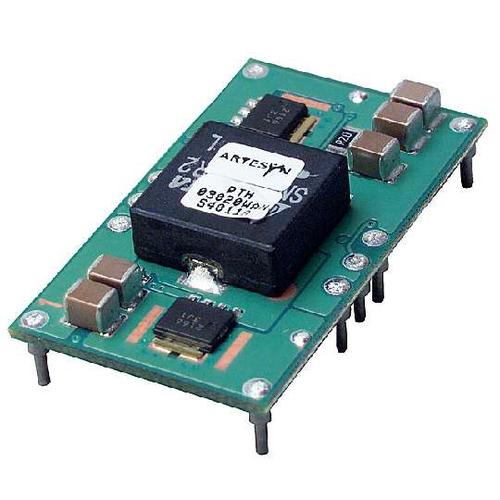

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PTH03020 series of non-isolated power modules offers OEM designers a combination of high performance, small footprint, and industry leading features. As part of a new class of power modules these products provide designers with the flexibility to power the most complex multi-processor digital systems using off-the-shelf catalog parts.
- The series employs double-sided surface mount construction and provides high-performance step-down power conversion for up to 22 A of output current from a 3.3-V input bus voltage. The output voltage of the PTH03020W can be set to any value over the range, 0.8 V to 2.5 V, using a single resistor.
- This series includes Auto-Track. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down.
- Other operating features include an on/off inhibit, output voltage adjust (trim), and margin up/down controls. To ensure tight load regulation, an output voltage sense is also provided. A non-latching over-current trip and over-tempterature shutdown provide load fault protection.
- Target applications include complex multi-voltage, multi-processor systems that incorporate the industrys high-speed DSPs, micro-processors and bus drivers.
PTH03020WAH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 10 Pin |
| Case/Package | DIP-10 |
| Supply Voltage (DC) | 3.30 V |
| Power Rating | 55 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 2.95V ~ 3.65V |
| Output Voltage | 0.8V ~ 2.5V |
| Output Current | 22 A |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 250kHz ~ 340kHz |
| Topology | Buck |
| Input Voltage (Max) | 3.65 V |
| Input Voltage (Min) | 2.95 V |
| Output Current (Max) | 22 A |
| Input Power (Max) | 55 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.95V ~ 3.65V |
| Show | |
| Size-Length | 38.1 mm |
| Size-Width | 22.1 mm |
| Size-Height | 8.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
