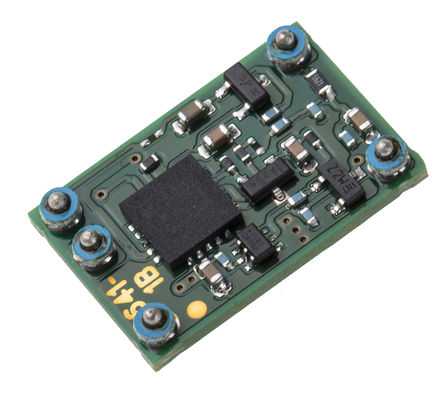

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PTN78000AAZ is a 9W surface-mount non-isolated adjustable buck-boost Switching Regulator with wide negative output. The PTN78000A is a series of high-efficiency integrated switching regulators (ISR), that represent the third generation in the evolution of the PT78NR100 series of products. In new designs, it should be considered in place of the PT78NR100 series of single in-line pin (SIP) products. The PTN78000A is smaller and lighter than its predecessor and has either similar or improved electrical performance characteristics. Operating from a wide-input voltage range, the PTN78000A provides high-efficiency, positive-to-negative voltage conversion for loads of up to 1.5A. The output voltage is set using a single external resistor and may be set to any value within the range, -15 to -3V. The PTN78000A has under-voltage lockout and is suited to a wide variety of general-purpose applications that operate off 12, 24 or tightly regulated 28VDC power.
- Wide-input voltage (7 V to 29 V)
- Wide-output voltage adjust (-15 to -3V)
- High efficiency (up to 84%)
- Output current limit
- Overtemperature shutdown
PTN78000AAZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | DIP-5 |
| Frequency | 550 kHz |
| Supply Voltage (DC) | 12.0 V |
| Power Rating | 9 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 7.00V ~ 29.0V |
| Output Voltage | -3.30 V, -15.0 V (min) |
| Output Current | 1.5 A |
| Number of Regulated Outputs | 1 Output |
| Output Power | 9 W |
| Switching Frequency | 440kHz ~ 660kHz |
| Topology | Buck, Boost |
| Input Voltage (Max) | 28.7 V |
| Input Voltage (Min) | 7 V |
| Input Voltage (DC Max) | 28.7 V |
| Input Voltage (DC Min) | 7 v |
| Output Current (Max) | 1.5 A |
| Input Power (Max) | 9 W |
| Input Power (Max) | 9 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 7V ~ 29V |
| Show | |
| Size-Length | 18.92 mm |
| Size-Width | 12.57 mm |
| Size-Height | 8.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
