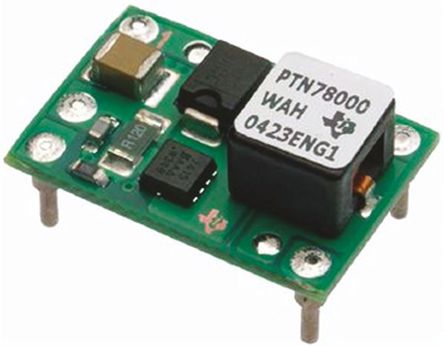

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Provide the ability to switch between voltages by using this step down PTN78000WAZT DC to DC converter and switching regulator module. It has a voltage of 2.5 to 12.6 V. This part has a temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.

Show

PTN78000WAZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	DIP-5
Supply Voltage (DC)	20.0 V
Power Rating	18 W
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 36.0V
Output Voltage	2.5V ~ 12.6V
Output Current	1.5 A
Number of Regulated Outputs	1 Output
Output Power	22.5 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	7 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	7 v
Output Voltage (Max)	12.6 V
Output Voltage (Min)	2.5 V
Output Current (Max)	1.5 A
Output Current (Min)	0 A
Input Power (Max)	22.5 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	7V ~ 36V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
