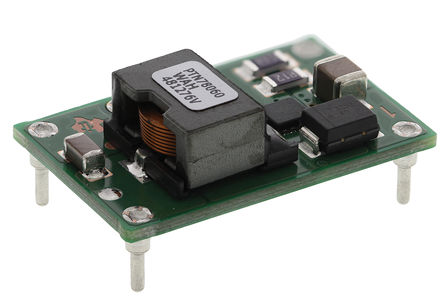

Image is for your reference only,please check specifications for details

PTN78060WAH - TI
Manufacturer:
TI
ManyChip's Part#:
MC1623779
Category:
DC to DC Converter, DC/DC Converter
Package:
DIP-7
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PTN78060WAH. Non Isolated Board Mount DC-DC Converter, DIP, 37.8W, 2.5V, 12.6V, 3A, 7V
Stock Locations:
Availability:
2,513 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 102.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78060WAH is a 37.8W Non-isolated Adjustable Switching Regulator with wide output voltage and wide input voltage range. The converter provides high efficiency and step-down voltage conversion as well the output voltage can be set to any value over a wide adjustment range using a single external resistor. It is well suited to a wide variety of general-purpose applications.
High efficiency up to 96%
On/off inhibit
Under-voltage lockout (UVLO)
Output current limit
Over-temperature protection
-40 to +85°C Operating temperature range

Show

PTN78060WAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-7
Frequency	550 kHz
Supply Voltage (DC)	20.0 V
Power Rating	45 W
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 36.0V
Output Voltage	2.5V ~ 12.6V
Output Current	3 A
Number of Regulated Outputs	1 Output
Output Power	45 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	7 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	7 v
Output Voltage (Max)	12.6 V
Output Voltage (Min)	2.5 V
Output Current (Max)	3 A
Input Power (Max)	37.8 W
Input Power (Max)	38 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	7V ~ 36V
	Show
Size-Length	25.27 mm
Size-Width	15.75 mm
Size-Height	16.51 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
