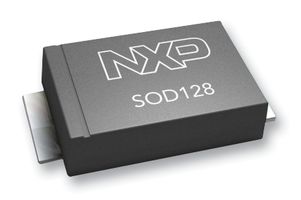

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTVSxS1UR series unidirectional flat lead low-profile surface-mounted Transient Voltage Suppressor Diode designed for transient overvoltage protection. It is available in 3.3 to 64V reverse standoff voltage range (VRWM).
400W Rated peak pulse power (PPPM)
350W Rated peak pulse power (PPPM) for 3V3
0.001µA Reverse current (IRM)

Show

PTVS5V0P1UP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	2 Pin
Case/Package	SOD-128
Number of Positions	2 Position
Clamping Voltage	9.2 V
Max Repetitive Reverse Voltage (Vrrm)	5V
Max Breakdown Voltage	7 V
Peak Pulse Power	600 W
Min Breakdown Voltage	6.4 V
	Show
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
