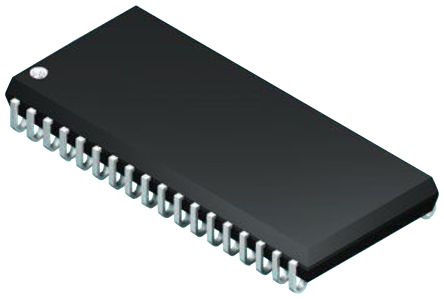

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE7368E is a multifunctional Power Supply Circuit especially designed for automotive powertrain systems using a standard 12V battery. The regulator follows the concept of its predecessor TLE6368, where the output of a pre-regulator feeds the inputs of the micro"s linear supplies. In detail, the TLE7368 cascades a buck converter with linear regulators and voltage followers to achieve lowest power dissipation. This configuration allows to power the application even at high ambient temperatures. The step-down converter delivers a pre-regulated voltage of 5.5V with a minimum peak current capability of 2.5A. Supplied by this step down converter two low drop linear post-regulators offer 5 and 3.3V (2.6V) with high accuracy. The current capability of the regulators is 800 and 700mA. The 3.3V (2.6V) linear regulator does have its own input allowing to insert a dropper from the Buck output to reduce the on chip power dissipation if necessary.
Hardware controlled on/off logic
Window watchdog circuit
Overcurrent protection on all regulators
Power sequencing on controller supplies
Overtemperature shutdown
High efficiency for complex supply systems
High buck current maintains operation under short-circuit condition
Low current consumption in stand-by
Easy realization of multiple supply rail systems
Monitoring and control of µC by reset generator and window-watchdog
Stand-by regulator with lowest current consumption

Show

TLE7368E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	PG-DSO-36
Number of Outputs	3 Output
Output Current	30 mA
Number of Positions	36 Position
Switching Frequency	425 kHz
Input Voltage (Max)	45 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	5.1 V
Output Voltage (Min)	4.9 V
Output Current (Max)	700mA, 800mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 45V
	Show
Size-Length	12.8 mm
Size-Width	11 mm
Size-Height	2.55 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
