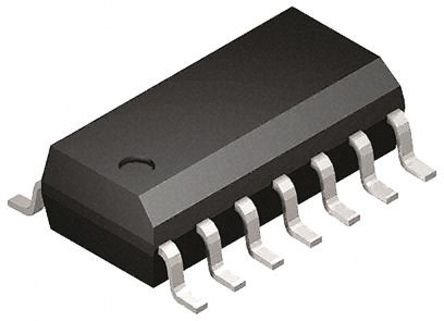

TD350E - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC11042638
Category:
FET Driver
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TD350E IGBT/MOSFET Driver, High Side, 26V Supply, 2.3A Out, 450ns Delay, SOIC-14
Stock Locations:
Availability:
859 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.37

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TD350E is an advanced Gate Driver for IGBTs and power MOSFETs. Control and protection functions are included and allow the design of high reliability systems. The innovative active Miller clamp function eliminates the need for negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver. The device also includes IGBT de-saturation protection and a FAULT status output and is compatible with both pulse transformer and optocoupler signals.
Active Miller clamp feature
Two-level turn-OFF with adjustable level and delay
De-saturation detection
Fault status output
Negative gate drive capability
Separate sink and source outputs for easy gate driving
UVLO protection
2kV ESD protection (HBM)
ESD sensitive device, take proper precaution while handling the device.

Show

TD350E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	26.0V (max)
Rise/Fall Time	130ns, 75ns (Max)
Number of Outputs	2 Output
Output Current	1.5 A
Number of Positions	14 Position
Power Dissipation	500 mW
Rise Time	175 ns
Fall Time	90 ns
Fall Time (Max)	90 ns
Fall Time (Max)	175 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Supply Voltage	12V ~ 26V
Supply Voltage (Max)	26 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
