DESCRIPTION

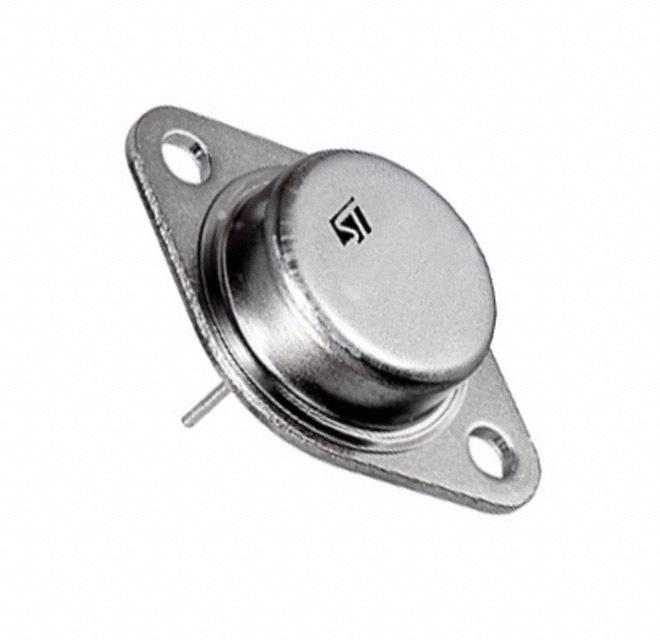

The 2N3771, 2N3772 are silicon epitaxial-base NPN transistors mounted in Jedec Jedec TO-3 metal case. They are intended for linear amplifiers and inductive switching applications.
■ STMicroelectronics PREFERRED SALESTYPES

Show

2N3771 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-3
Frequency	0.2 MHz
Voltage Rating (DC)	40.0 V
Current Rating	30.0 A
Power Rating	150 W
Polarity	NPN
Power Dissipation	150 W
Breakdown Voltage (Collector to Emitter)	40 V
hFE Min	15 @15A, 4V
hFE Max	60
Input Power (Max)	150 W
DC Current Gain (hFE)	60
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	150000 mW
	Show
Size-Length	39.5 mm
Size-Width	26.2 mm
Size-Height	8.7 mm
Material	Silicon
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
