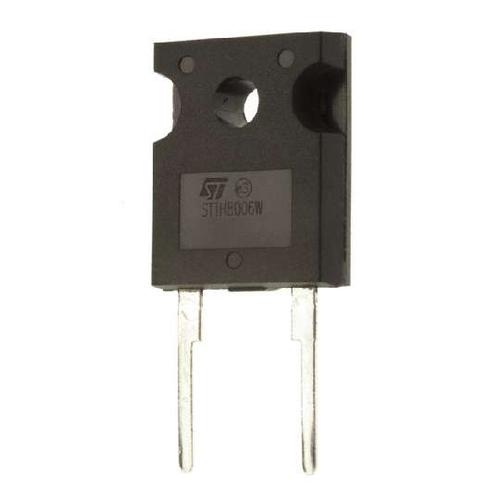

Image is for your reference only,please check specifications for details

STTH30R06W - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2162631
Category:
TVS Diode
Package:
DO-247-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH30R06W Fast / Ultrafast Power Diode, 600V, 30A, Single, 1.85V, 70ns, 160A
Stock Locations:
Availability:
487 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The STTH30R06, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial applications, as rectification and discontinuous mode PFC boost diode.
FEATURES AND BENEFITS
■ Ultrafast switching
■ Low reverse current
■ Low thermal resistance
■ Reduces switching & conduction losses

Show

STTH30R06W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-247-2
Voltage Rating (DC)	600 V
Current Rating	30.0 A
Output Current	≤30.0 A
Forward Voltage	1.85V @30A
Polarity	Standard
Thermal Resistance	1.1 ℃/W
Reverse recovery time	70 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	160 A
Maximum Forward Voltage (Max)	1.85 V
Forward Current (Max)	30000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Width	5.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
