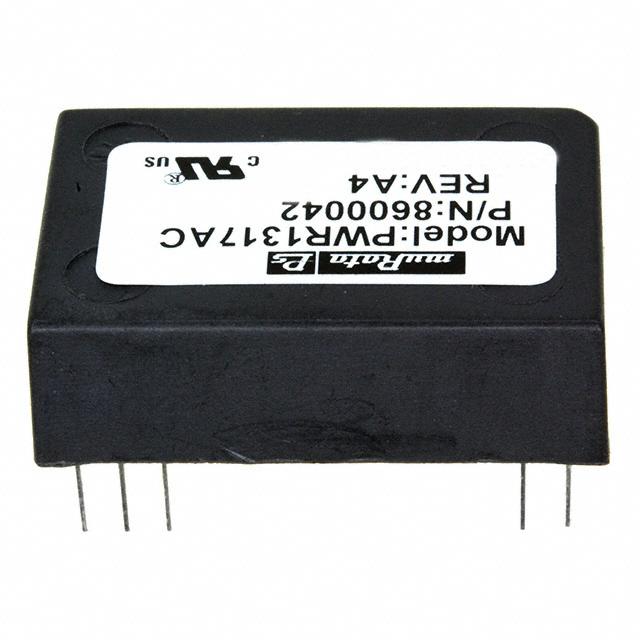

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Isolated Module DC DC Converter 2 Output 15V -15V 50mA, 50mA 13.5V - 16.5V Input

Show

PWR1317AC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	9 Pin
Case/Package	PDIP-24
Supply Voltage (DC)	15.0 V
Power Rating	2 W
Number of Outputs	2 Output
Input Voltage (DC)	13.5V ~ 16.5V
Output Voltage	±15 V
Output Current	50.0 mA
Output Power	1.5 W
Isolation Voltage	4 kV
Input Voltage (Max)	16.5 V
Input Voltage (Min)	13.5 V
Input Voltage (DC Max)	16.5 V
Input Voltage (DC Min)	13.5 v
Output Current (Max)	50mA, 50mA
Input Power (Max)	1.5 W
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Input Voltage	15 V
	Show
Size-Width	20.45 mm
Size-Height	10.16 mm
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
