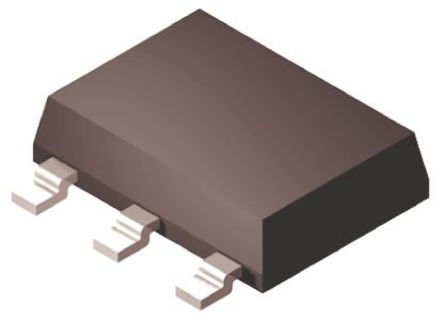

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This device is designed for applications requiring extremely
- high current gain at collector currents to 1.0 A.
PZTA14 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 1.20 A |
| Power Rating | 1 W |
| Power Dissipation | 1000 mW |
| Breakdown Voltage (Collector to Emitter) | 30 V |
| hFE Min | 20000 @100mA, 5V |
| Input Power (Max) | 1 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 125MHz (Min) |
| Power Dissipation (Max) | 1000 mW |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.56 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
