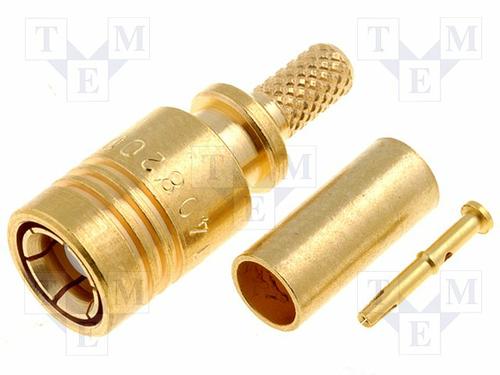

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The R114082000 is a straight SMB Plug with gold over nickel plated beryllium copper contacts, gold over nickel plated brass body, for 2.6/50+75 S cable. This SMB series plug has PTFE insulation, cable mounting and crimp termination. The SMB snap-on subminiature coaxial connector provides a fast and reliable connection for high density packaging for applications up to 4GHz. The design permits quick engagement and disengagement.
- Subminiature coaxial connector
- Snap-on coupling
- Low weight and reduced outline dimensions
- Meets MIL-C-39012 and MIL-C-39012/67-72 standard
- -55 to 100°C Temperature range
R114082000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Gender | Male |
| Contact Plating | Nickel, Gold |
| Frequency | 4.00 GHz |
| Voltage Rating (AC) | 250 V |
| Insulation Resistance | 1000 MΩ |
| Orientation | Straight |
| Number of Mating Cycles | 500 Cycle |
| Operating Temperature (Max) | 165 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 20.6 mm |
| Contact Material | Beryllium Copper |
| Material | Brass |
| Insulation Material | Teflon |
| Operating Temperature | -65℃ ~ 165℃ |
| Product Lifecycle Status | Active |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| Mil-Spec | Yes |
