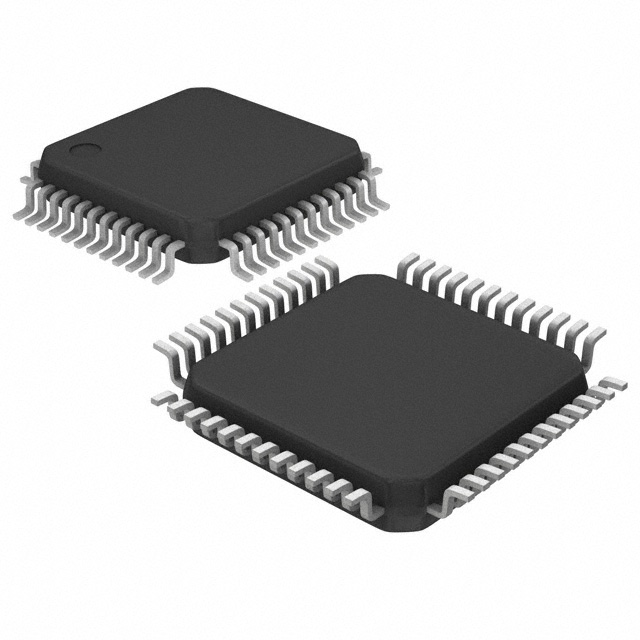

Image is for your reference only,please check specifications for details
- R5F21237JFP - Renesas Electronics
-
Manufacturer:Renesas Electronics
-
ManyChip's Part#:MC140673933
-
Category:Microcontroller, MCU IC
-
Package:LQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit R8C CISC 48KB Flash 3.3V/5V 48Pin LQFP
-
Stock Locations:
-
Availability:292 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.65
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- This MCU is built using the high-performance silicon gate CMOS process using the R8C CPU core and is packaged in a 48-pin plastic molded LQFP. ThisMCU operates using sophisticated instructions featuring a high level of instruction efficiency. With 1 Mbyte of address space, it is capable of executing instructions athigh speed. This MCU is equipped with one CAN module and suited to in-vehicle or FA networking.
- Furthermore, the data flash (1 KB x2 blocks) is embedded in the R8C/23 Group.
- The difference between R8C/22 and R8C/23 Groups is only the existence of the data flash. Their peripheral functions are the same.
- Applications
- Automotive, etc.
R5F21237JFP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | LQFP-48 |
| Clock Speed | 20.0 MHz |
| RAM Memory Size | 2.5K x 8 |
| Access Time | 20.0 µs |
| Core Architecture | R8C |
| Number of UARTs | 2 UART |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
