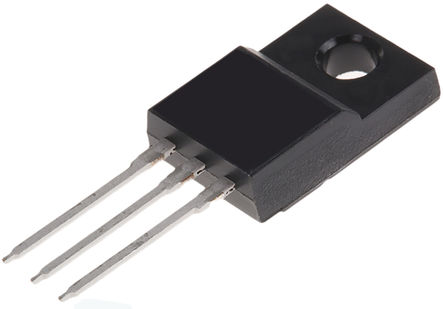

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

R6012ANX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Drain to Source Resistance (on) (Rds)	420 mΩ
Power Dissipation	50 W
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Rise Time	30 ns
Input Capacitance (Ciss)	1300pF @25V(Vds)
Input Power (Max)	50 W
Fall Time	35 ns
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	50W (Tc)
	Show
Size-Length	10.3 mm
Size-Width	4.8 mm
Size-Height	15.4 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
