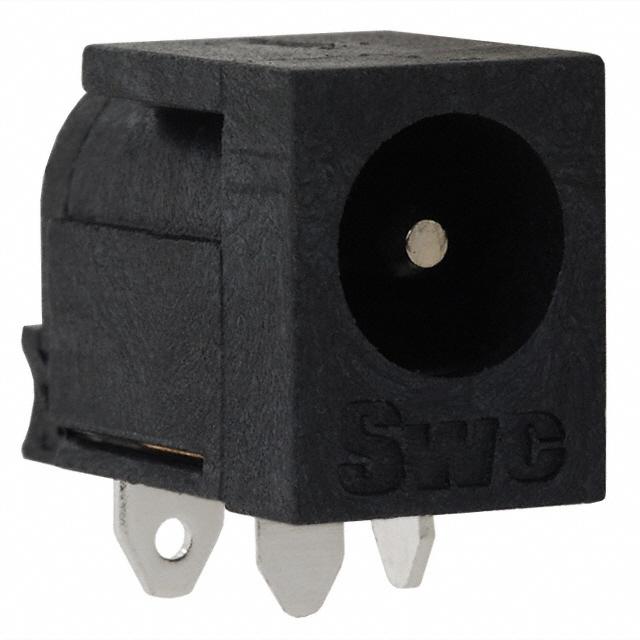

Image is for your reference only,please check specifications for details

RAPC722X - Switchcraft / Conxall
Manufacturer:
Switchcraft / Conxall
ManyChip's Part#:
MC7205863
Category:
Power Entry Module
Datasheet:
Datasheet 3D Model
Description:
SWITCHCRAFT RAPC722X DC Power Connector, Jack, 5A, 2mm, Through Hole Mount
Stock Locations:
Availability:
9,264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.39

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RAPC722X is a right angle DC Power Jack for mounting on PC boards with a 0.080" centre pin size.
Thermoplastic Material
Tin-plated Copper Alloy Sleeve
Nickel-plated Copper Alloy Tip
<50mR Contact Resistance
<100mR Insulation Resistance

Show

RAPC722X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	2 Contact
Gender	Female
Contact Plating	Nickel
Voltage Rating (AC)	250 V
Current Rating	5 A
Insulation Resistance	30 MΩ
Number of Mating Cycles	5000 Cycle
Mounting Angle	90.0 °
Current Rating (Max)	5 A
Maximum Contact Resistance (Max)	30 mΩ
	Show
Size-Height	11 mm
Color	Black
Contact Material	Brass
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
