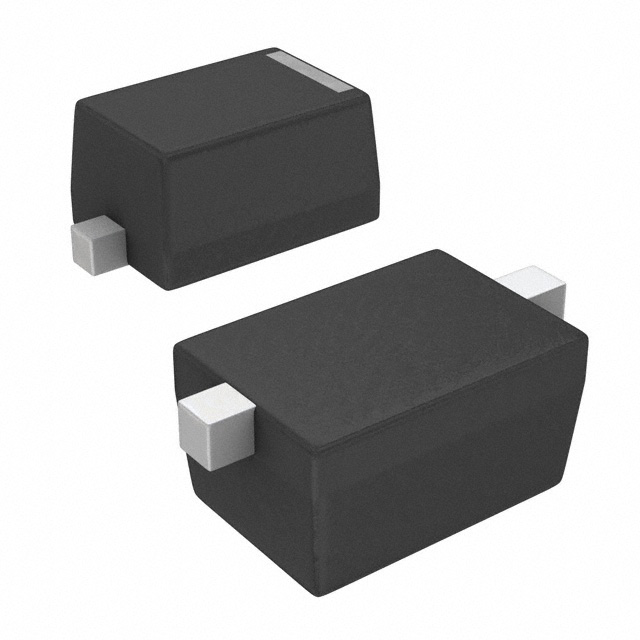

Image is for your reference only,please check specifications for details
- RB521S30 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC3882389
-
Category:Schottky Diode
-
Package:SOD-523
-
Datasheet:Datasheet 3D Model
-
Description:Small Signal Diode, Single, 30V, 200mA, 500mV, 125 C
-
Stock Locations:
-
Availability:205 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RB521S30 is a Schottky Barrier Diode with matte tin-plated lead terminals and green mould compound case. This product is general usage and suitable for many different applications.
- Low forward voltage drop
- Flat lead, surface mount device under 0.70mm height
- Extremely small outline plastic package SOD523F
- Moisture level sensitivity 1
- Pb-free version
RB521S30 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-523 |
| Number of Positions | 2 Position |
| Forward Voltage | 0.5 V |
| Power Dissipation | 200 mW |
| Thermal Resistance | 500℃/W (RθJA) |
| Forward Current | 200 mA |
| Maximum Forward Voltage (Max) | 500 mV |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Length | 1.3 mm |
| Size-Width | 0.9 mm |
| Size-Height | 0.7 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
