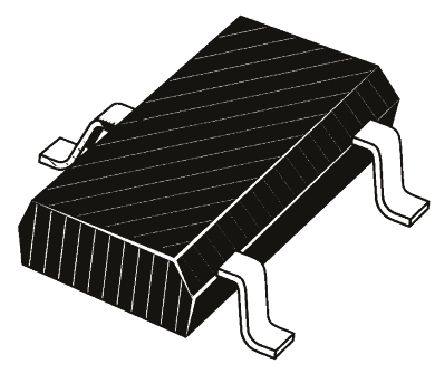

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 250V 500mA (Ta) 540mW (Ta) Surface Mount TSMT3
RDR005N25TL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TSMT-3 |
| Power Dissipation | 540mW (Ta) |
| Drain to Source Voltage (Vds) | 250 V |
| Input Capacitance (Ciss) | 70pF @25V(Vds) |
| Input Power (Max) | 1 W |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 540mW (Ta) |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.8 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
