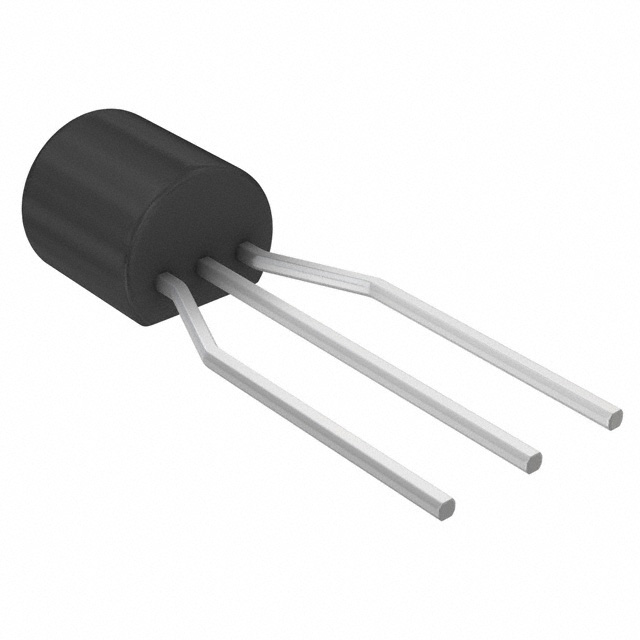

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N−Channel Junction Field Effect Transistors, depletion mode (Type A) designed for general purpose audio amplifiers, analog switches and choppers.
Features
•N−Channel for Higher Gain
•Drain and Source Interchangeable
•High AC Input Impedance
•High DC Input Resistance
•Low RDS(on)< 18
•Fast Switching td(on)+ tr= 8.0 ns (Typ)
•Low Noise en= 6.0 nV/√Hz@ 10 Hz (Typ)
•Pb−Free Packages are Available

Show

J110G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Voltage Rating (DC)	25.0 V
Current Rating	10.0 mA
Drain to Source Resistance (on) (Rds)	18 Ω
Polarity	N-Channel
Breakdown Voltage (Gate to Source)	25.0 V
Reverse Breakdown Voltage	25 V
Input Power (Max)	310 mW
	Show
Operating Temperature	135℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
