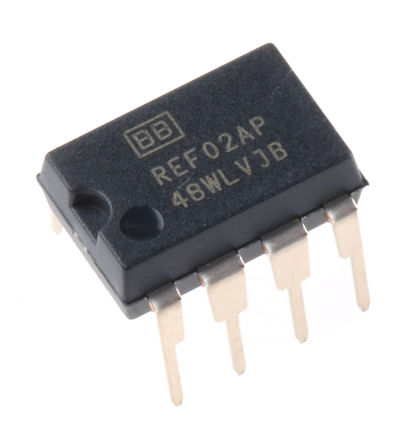

- REF02AP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5014282
-
Category:Voltage Reference
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Series Voltage Reference +5V Precision Voltage Reference V-Ref Precision 5V 21mA 8Pin PDIP Tube
-
Stock Locations:
-
Availability:1,986 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.71
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The REF02 is a precision 5V voltage reference. The drift is laser trimmed to 10ppm/°C max over the extended industrial and military temperature range. The REF02 provides a stable 5V output that can be externally adjusted over a ±6% range with minimal effect on temperature stability. The REF02 operates from a single supply with an input range of 8V to 40V with a very low current drain of 1mA, and excellent temperature stability due to an improved design. Excellent line and load regulation, low noise, low power, and low cost make the REF02 the best choice whenever a 5V voltage reference is required. Available package options are DIP-8 and SO-8. The REF02 is an ideal choice for portable instrumentation, temperature transducers, Analog-to-Digital (A/D) and Digitalto- Analog (D/A) converters, and digital voltmeters.
REF02AP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Current Rating | 21.0 mA |
| Capacitance Tolerance | ±0.3 % |
| Input Voltage (DC) | 8.00V ~ 33.0V |
| Output Voltage | 5 V |
| Output Current | 21 mA |
| Supply Current | 1.4 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Quiescent Current | 1.00 mA |
| Input Voltage (Max) | 40 V |
| Output Voltage (Max) | 5.015 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 21 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.2 % |
| Voltage Rating | 5 V |
| Input Voltage | 8V ~ 40V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Temperature Coefficient | ±15 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
