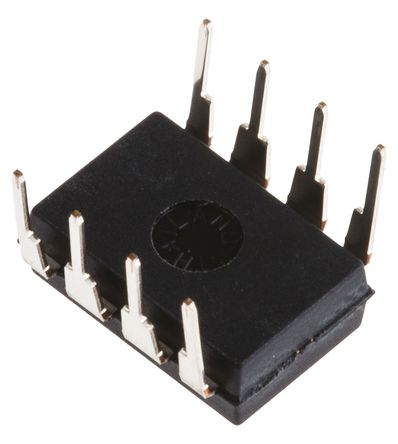

REF102CP - TI
Manufacturer:
TI
ManyChip's Part#:
MC4252300
Category:
Voltage Reference
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
Series Voltage Reference Precision Voltage Reference V-Ref Precision 10V 10mA 8Pin PDIP Tube
Stock Locations:
Availability:
243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 23.7

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The REF102 is a precision 10V voltage reference. The drift is laser-trimmed to 2.5ppm/°C max C-grade over the industrial temperature range. The REF102 achieves its precision without a heater. This results in low power, fast warm-up, excellent stability, and low noise. The output voltage is extremely insensitive to both line and load variations and can be externally adjusted with minimal effect on drift and stability. Single supply operation from 11.4V to 36V and excellent overall specifications make the REF102 an ideal choice for demanding instrumentation and system reference applications.

Show

REF102CP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Capacitance Tolerance	±0.025 %
Input Voltage (DC)	11.4V ~ 36.0V
Output Voltage	10 V
Output Current	10 mA
Supply Current	1.4 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	1.40 mA
Input Voltage (Max)	40 V
Output Voltage (Max)	10.003 V
Output Voltage (Min)	10 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Accuracy	±2.5 mV
Input Voltage	11.4V ~ 36V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-25℃ ~ 85℃
Temperature Coefficient	±2.5 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
