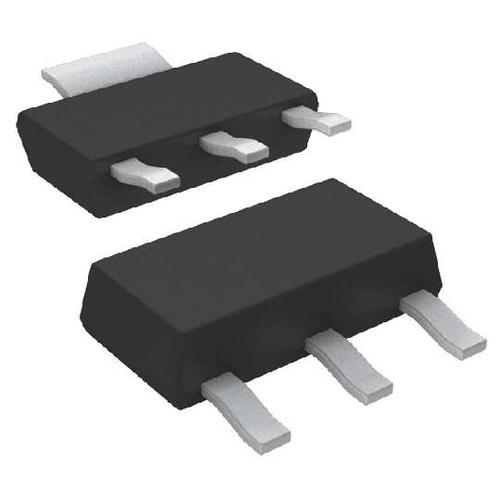

Image is for your reference only,please check specifications for details

BSP75NTA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC565940
Category:
Power Distribution
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
Power Switch Lo Side 1Out 0.7A 0.52Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.69

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BSP75NTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	60.0 V
Current Rating	1.20 A
Power Rating	1.5 W
Number of Outputs	1 Output
Output Current	2.3 A
Drain to Source Resistance (on) (Rds)	675 mΩ
Polarity	N-Channel
Power Dissipation	1.5 W
Drain to Source Voltage (Vds)	60.0 V
Breakdown Voltage (Drain to Source)	60.0 V
Continuous Drain Current (Ids)	1.30 A
Input Voltage (Max)	10 V
Output Current (Max)	1.3 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
Input Voltage	10 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
