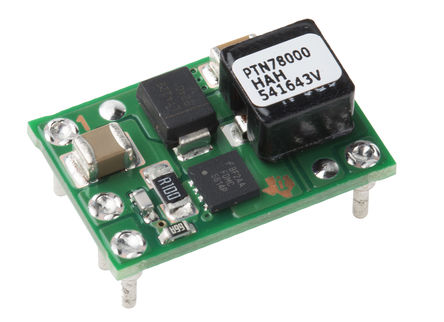

Image is for your reference only,please check specifications for details

PTN78000HAH - TI
Manufacturer:
TI
ManyChip's Part#:
MC4760228
Category:
DC to DC Converter, DC/DC Converter
Package:
DIP-5
Datasheet:
Datasheet 3D Model
Description:
Non Isolated POL DC-DC Converter, 22.5W, 11.85V, 22V, 1.5A, Adjustable, DIP
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTN78000HAH is a 22.5W Non-isolated Adjustable Switching Regulator with wide output voltage and wide input voltage range. It is smaller and lighter than its predecessors and has either similar or improved electrical performance characteristics. This provides high efficiency and output voltage is set using a single external resistor. This module is suited to a wide variety of general-purpose applications.
High efficiency up to 95%
On/off inhibit
Under-voltage lockout (UVLO)
Output current limit
Over-temperature protection
-40 to +85°C Operating temperature range

Show

PTN78000HAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	DIP-5
Supply Voltage (DC)	20.0 V
Power Rating	22.5 W
Number of Outputs	1 Output
Input Voltage (DC)	15.0V ~ 36.0V
Output Voltage	11.85V ~ 22V
Output Current	1.5 A
Number of Regulated Outputs	1 Output
Output Power	22.5 W
Switching Frequency	440kHz ~ 660kHz
Topology	Buck
Input Voltage (Max)	36 V
Input Voltage (Min)	15 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	15 v
Output Voltage (Max)	22 V
Output Voltage (Min)	11.85 V
Output Current (Max)	1.5 A
Input Power (Max)	22.5 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	24 V
Input Voltage	15V ~ 36V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
