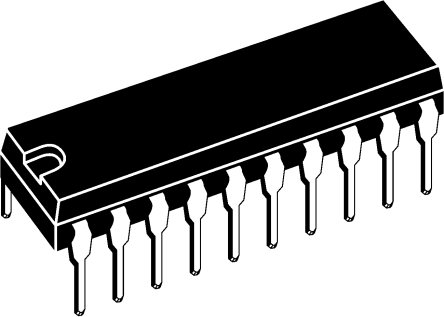

Image is for your reference only,please check specifications for details

AD7545AKNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC464245
Category:
Digital to Analog, DAC IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7545AKNZ Digital to Analog Converter, 12Bit, Parallel, 4.75V to 5.25V, 14.25V to 15.75V, DIP, 20Pins
Stock Locations:
Availability:
10 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 44.09

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7545AKNZ is a 12-bit CMOS multiplying Digital-to-analog Converter (DAC) with internal data latches. This new design features a WR pulse width of 100ns, which allows interfacing to a much wider range of fast 8-bit and 16-bit microprocessors. It is loaded by a single 12-bit-wide word under the control of the CS and WR inputs, tying these control inputs low makes the input latches transparent, allowing un-buffered operation of the DAC.
Fast interface timing

Show

AD7545AKNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Number of Outputs	1 Output
Supply Current	2 mA
Number of Channels	1 Channel
Number of Positions	20 Position
Number of Bits	12 Bit
Power Dissipation	450 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	450 mW
Number of DACs	1 DAC
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Size-Length	26.16 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
