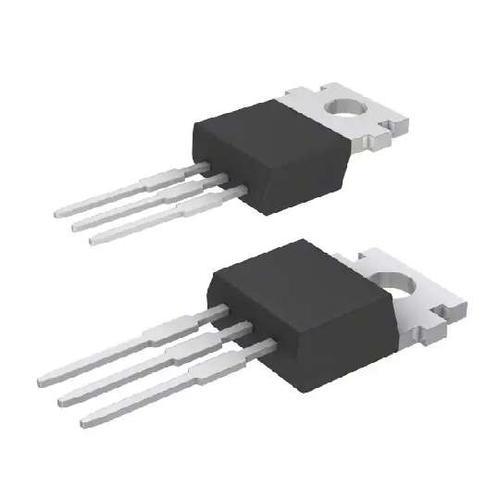

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SBR40U100CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Forward Voltage	0.72 V
Forward Current	40000 mA
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	720mV @20A
Forward Current (Max)	40 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.66 mm
Size-Width	4.82 mm
Size-Height	9.01 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
