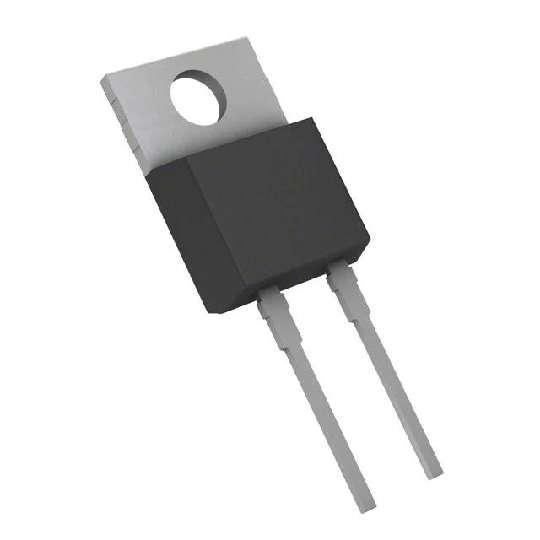

Image is for your reference only,please check specifications for details

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RF1005TF6S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.7V @10A
Thermal Resistance	3.5℃/W (RθJC)
Reverse recovery time	40 ns
Forward Current	10 A
Maximum Forward Voltage (Max)	1.7V @10A
Forward Current (Max)	10000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
