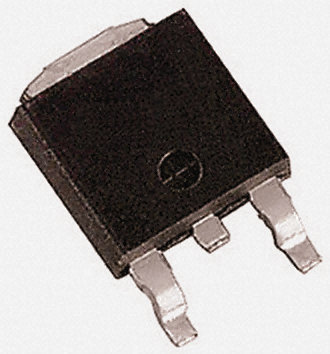

Image is for your reference only,please check specifications for details

RHRD660S9A - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC49886089
Category:
TVS Diode
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR RHRD660S9A Fast / Ultrafast Power Diode, 600V, 6A, Single, 2.1V, 35ns, 60A
Stock Locations:
Availability:
10,690 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.65

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RHRD660S9A is a hyper-fast Diode with soft recovery characteristics (trr <30ns). It has half the recovery time of ultra-fast diodes and are silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as free-wheeling/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Its low stored charge and hyper-fast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
Avalanche energy rated
Planar construction
AEC-Q101 qualified

Show

RHRD660S9A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	600 V
Current Rating	6.00 A
Output Current	≤6.00 A
Forward Voltage	2.1V @6A
Polarity	Standard
Thermal Resistance	3℃/W (RθJC)
Reverse recovery time	35 ns
Forward Current	6 A
Max Forward Surge Current (Ifsm)	60 A
Maximum Forward Voltage (Max)	2.1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Width	6.22 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
