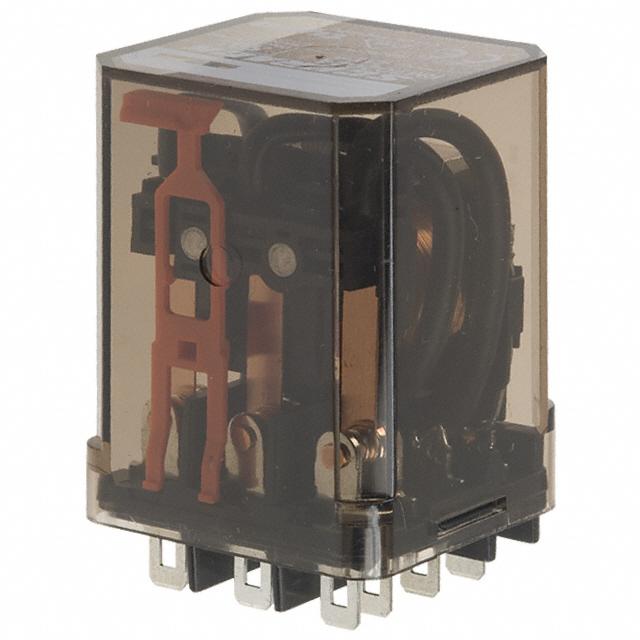

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Industrial Relay, 345 Ohms Coil Resistance
- * Silver cadmium oxide contact material
- General relay type.
RM702024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Quick Connect |
| Voltage Rating (DC) | 24.0 V |
| Current Rating | 16 A |
| Input Voltage (DC) | 24.0 V |
| Contacts Type | 3PDT |
| Power Consumption | 1.6 W |
| voltage rating | 2.40 V |
| Contact Current Rating | 16 A |
| Coil Voltage | 24 VDC |
| Coil Current | 70.8 mA |
| Coil Power (DC) | 1.60 W |
| Coil Resistance | 345 Ω |
| Carry Current | 16.0 A |
| Coil Voltage (DC) | 24 V |
| Input Power (Max) | 6 KVA |
| Switching Current (Max) | 40 A |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 400 VAC |
| Show | |
| Size-Length | 35.5 mm |
| Size-Width | 38.5 mm |
| Size-Height | 48.5 mm |
| Contact Material | Silver Cadmium Oxide |
| Operating Temperature | -40℃ ~ 60℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Non-Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410020 |
| ECCN Code | EAR99 |
