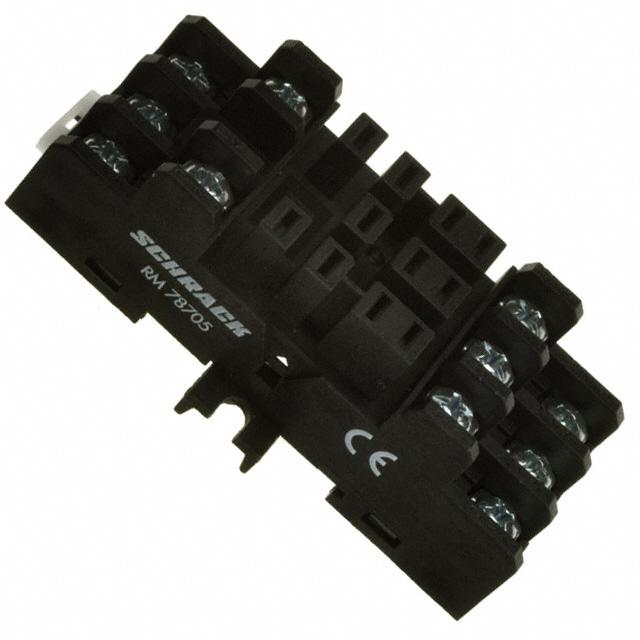

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RM78705 is a 11-pin Relay Socket with screw terminals. For use with RM 2/3-poles power relays.
- -40 to 40°C Ambient temperature range
- Pollution degree 2
RM78705 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 11 Pin |
| Case/Package | - |
| Number of Contacts | 11 Contact |
| Gender | Female |
| Voltage Rating (AC) | 250 V |
| Current Rating | 16 A |
| Number of Positions | 11 Position |
| Carry Current | 16.0 A |
| Current Rating (Max) | 16 A |
| Operating Temperature (Max) | 40 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 250 VAC |
| Voltage Rating | 250 VAC |
| Show | |
| Size-Length | 81.6 mm |
| Size-Width | 42.2 mm |
| Size-Height | 26.5 mm |
| Operating Temperature | -40℃ ~ 40℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
