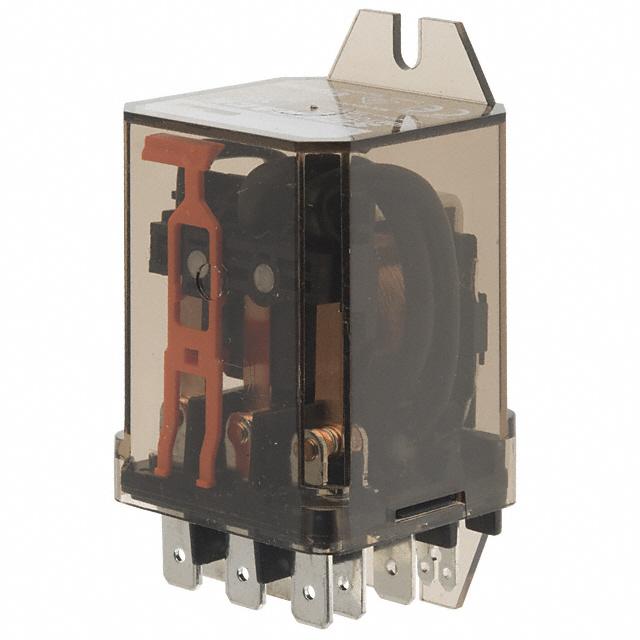

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RM805012 is a Power Relay with DC coil. This RM8-series relay has 2-form-C AgCdO contact without test button. Cover with mounting brackets, 6.3mm quick-connect terminals. Typical applications such as elevator control, power supplies.
Mechanical indicator
Push-to-test button
Plug-in terminal type
-40 to 60°C Operating temperature range

Show

RM805012 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Bracket
Case/Package	Tinted polycarbonate
Current Rating	25 A
Input Voltage (DC)	12.0 V
Contacts Type	DPDT
Input Current	25.0 A
voltage rating	1.20 V
Contact Current Rating	25.0 A
Coil Voltage	12 VDC
Coil Current	109 mA
Coil Power (DC)	1.20 W
Coil Resistance	110 Ω
Carry Current	25.0 A
Coil Voltage (DC)	12 V
Switching Current (Max)	25 A
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-45 ℃
Voltage Rating	400 VAC
	Show
Size-Length	38.5 mm
Size-Width	35.5 mm
Size-Height	73.5 mm
Contact Material	Silver Cadmium Oxide
Operating Temperature	-45℃ ~ 65℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Non-Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536410050
ECCN Code	EAR99
