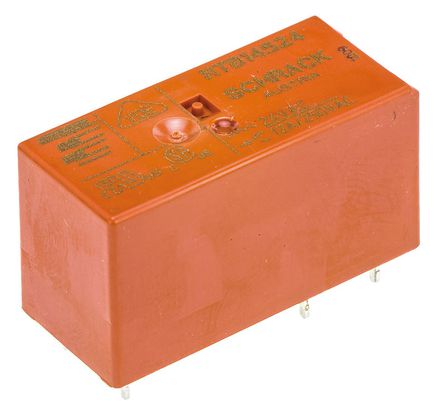

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Power PCB Relay RT1**
- * 1 pole 12 / 16 A, 1 CO or 1 NO contact
- * DC- or AC-coil
- * Sensitive coil 400 mW
- * 5 kV / 10 mm coil-contact, reinforced insulation
- * Ambient temperature 85°C (DC-coil)
- * WG version: Product in accordance to IEC60335-1
- **Applications**
- * Boiler control, timers, garage door control, POS automation, interface modules
RTB14524 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | - |
| Current Rating | 12 A |
| Contacts Type | SPDT |
| Power Consumption | 0.75 VA |
| voltage rating | 3.60 V |
| Contact Current Rating | 12 A |
| Coil Voltage | 24 VAC |
| Coil Current | 16.7 mA |
| Coil Voltage (AC) | 24 V |
| Coil Resistance | 350 Ω |
| Input Power (Max) | 3 KVA |
| Switching Current (Max) | 12 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VAC |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 12.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
