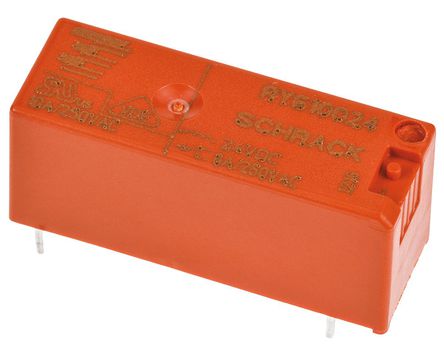

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RY210024 is a 1-pole general-purpose Power PCB Relay with DC coil, RYII series. 1 form-C (1CO) contact configuration. 3.2mm pinning, flux-proof. 5kV/8mm coil-contact. Reinforced insulation, low component height of 12.3mm. Especially suitable for resistive and inductive loads on form A (NO) and form B (NC) contacts. Plastic materials according to IEC 60335-1 (domestic appliances).
- RT II Environmental protection rating
RY210024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Current Rating | 10 A |
| Power Rating | 220 W |
| Input Voltage (DC) | 24.0 V |
| Contacts Type | SPDT |
| Power Consumption | 22.0 mW |
| Contact Current Rating | 8.00 A |
| Coil Voltage | 24 VDC |
| Coil Current | 10.2 mA |
| Coil Power (DC) | 220 mW |
| Coil Resistance | 2.35 kΩ |
| Carry Current | 8.00 A |
| Coil Voltage (DC) | 24 V |
| Input Power (Max) | 2 KVA |
| Switching Current (Max) | 8 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 28.5 mm |
| Size-Width | 10.1 mm |
| Size-Height | 12.3 mm |
| Contact Material | Silver Cadmium Oxide |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Non-Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
