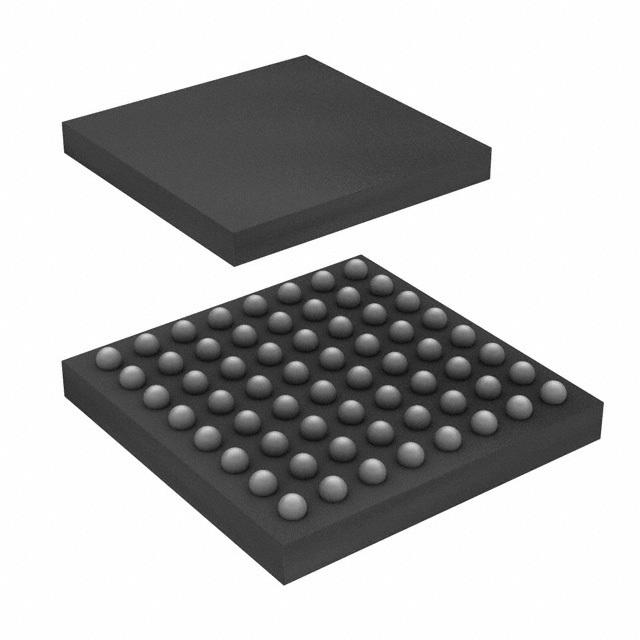

Image is for your reference only,please check specifications for details
- S29GL01GP11FFIR10 - Cypress Semiconductor
-
Manufacturer:Cypress Semiconductor
-
ManyChip's Part#:MC55190017
-
Category:Flash Memory, Flash
-
Package:BGA-64
-
Datasheet:Datasheet 3D Model
-
Description:NOR Flash Parallel 3V/3.3V 1Gbit 128M/64M x 8Bit/16Bit 110ns 64Pin Fortified BGA Tray
-
Stock Locations:
-
Availability:8 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 24.39
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The S29GL01GP11FFIR10 is a 1Gbit 3V, page flash with 90nm MirrorBit process technology in 64 pin BGA package. This device offers a fast page access time of 25ns with a corresponding random access time as fast as 110ns at regulated VCC. It features a write buffer that allows a maximum of 32words/64bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. It makes device ideal for today"s embedded applications that require higher density, better performance and lower power consumption. It has an uniform 64Kword/128Kbyte sector architecture with one thousand twenty-four sectors, hardware reset input (RESET#) resets device and ready/busy# output (RY/BY#) detects program or erase cycle completion.
- R1 = VIO = VCC = 3V to 3.6V, highest address sector protected
- 8-word/16-byte page read buffer
- 100000 erase cycles per sector typical and 20year data retention typical
- Write operation status bits indicate program and erase operation completion
- Unlock bypass program command to reduce programming time
- Support for CFI (Common Flash Interface)
- Persistent and password methods of advanced sector protection
- Suspend and resume commands for program and erase operations
- Industrial temperature range from -40°C to +85°C
- WP#/ACC input, protects first or last sector regardless of sector protection settings
S29GL01GP11FFIR10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | BGA-64 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 110 mA |
| Number of Positions | 64 Position |
| Number of Bits | 8, 16 Bit |
| Access Time | 110 ns |
| Memory Size | 128000000 B |
| Access Time(Max) | 110 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
