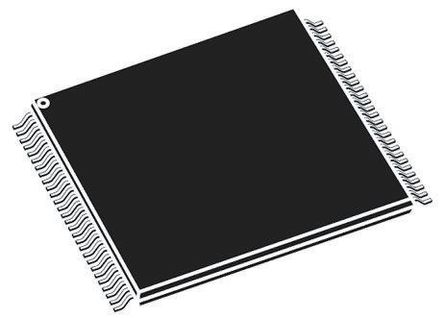

Image is for your reference only,please check specifications for details

S29GL512P11TFI010 - Spansion
Manufacturer:
Spansion
ManyChip's Part#:
MC63099125
Category:
Flash Memory, Flash
Package:
TSOP-56
Datasheet:
Datasheet 3D Model
Description:
SPANSION S29GL512P11TFI010. Flash Memory, 512Mbit, 64M x 8Bit / 32M x 16Bit, CFI, TSOP, 56Pins
Stock Locations:
Availability:
81 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.96

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The S29GL512P11TFI010 is a Mirrorbit® Flash Memory Device fabricated on 90nm process technology. This device offers a fast page access time of 25ns with a corresponding random access time as fast as 90ns. It features a write buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes these devices ideal for today"s embedded applications that require higher density, better performance and lower power consumption.
Single 3V read/program/erase
Enhanced Versatile I/O™ control
Suspend and resume commands for program and erase operations
Write operation status bits indicate program and erase operation completion
Unlock bypass program command to reduce programming time
Support for CFI (common flash interface)
Persistent and password methods of advanced sector protection
Hardware reset input (RESET#) resets device
90nm MirrorBit process technology
8-word/16-byte Page read buffer
32-word/64-byte Write buffer reduces overall programming time for multiple-word updates
Secured silicon sector region
100000 Erase cycles per sector typical
20-year Data retention typical

Show

S29GL512P11TFI010 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	56 Pin
Case/Package	TSOP-56
Supply Voltage (DC)	2.70V (min)
Supply Current	110 mA
Number of Positions	56 Position
Access Time	110 ns
Memory Size	64000000 B
Access Time(Max)	110 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V, 3.3V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	14 mm
Size-Width	18.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	3A991.b.1.a
HK STC License	NLR
