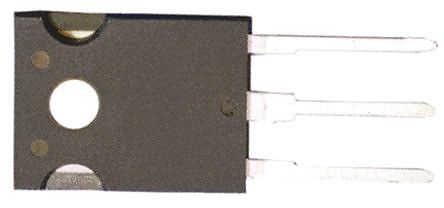

Image is for your reference only,please check specifications for details

SCS220AE2C - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC7456875
Category:
Diode Array, TVS Diode Array
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
SCS220 Series 650V 200uA Through Hole Schottky Barrier Diodes - TO-247-3
Stock Locations:
Availability:
268 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.17

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SCS220AE2C is a silicon carbide epitaxial planer SiC Schottky Barrier Diode features high speed switching and shorter recovery time. It can also be used in air-conditioner, refrigerator, AC Servo, stepper motor control, IH cooking heater and solar power inverters.
Reduced temperature dependence
Reduced switching loss
175°C Junction temperature

Show

SCS220AE2C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.55V @10A
Power Dissipation	160 W
Thermal Resistance	1.8 ℃/W
Reverse recovery time	0 ns
Forward Current	20 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	160000 mW
	Show
Size-Length	15.9 mm
Size-Width	5.03 mm
Size-Height	21.34 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
