Description

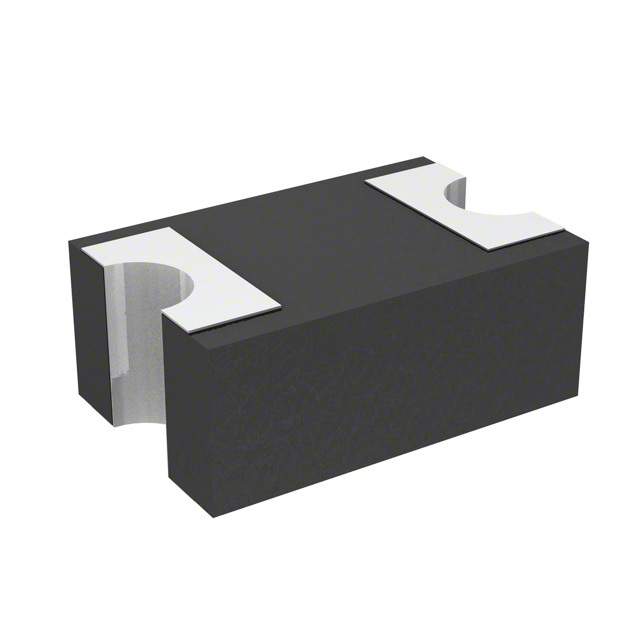

The SD0805S020S1R0 is a Schottky Barrier Rectifier Diode in FRP substrate with epoxy under-fill case and solderable lead-free tin-plated per MIL-STD-750 terminals. It offers unique lead-less chip which technology eliminates the lead frame wire bond to give the chip top-bottom symmetry for fewer mounting problems, better heat transfer and current handling capability (compared to SOD devices). It is suitable for use in switch mode power supplies, high-frequency rectification and reverse bias protection applications.
High-current capability
Low-power loss/high-efficiency
Halogen-free

Show

SD0805S020S1R0 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0805
Number of Positions	2 Position
Forward Voltage	450mV @1A
Thermal Resistance	28℃/W (RθJL)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	10 A
Maximum Forward Voltage (Max)	450 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
