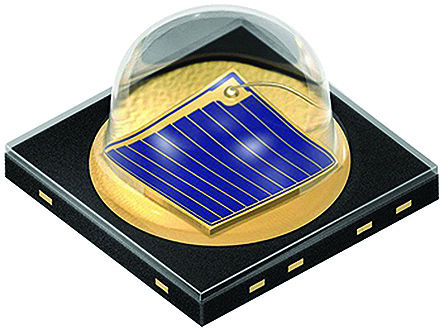

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- OSLON Black Series (850 nm) - 90°
- Q65111A6857
- Package: clear silicone
- Corrosion Robustness Class: 3B
- Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C
- Stress Test Qualification for Automotive Grade Discrete Semiconductors.
- ESD: 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
- IR lightsource with high efficiency
- Double stack emitter
- Low thermal resistance (Max. 9K/W)
- Centroid wavelength 850nm
SFH 4715AS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SMD-3 |
| Number of Positions | 2 Position |
| Forward Voltage | 3.2 V |
| Wavelength | 860 nm |
| Viewing Angle | 90° |
| Peak Wavelength | 860 nm |
| Rise Time | 11 ns |
| Test Current | 1000 mA |
| Forward Current | 1.5 A |
| Maximum Forward Voltage (Max) | 3.6 V |
| Forward Current (Max) | 1500 mA |
| Fall Time | 14 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 3.8 V |
| Show | |
| Size-Length | 3.85 mm |
| Size-Width | 3.85 mm |
| Size-Height | 2.29 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
