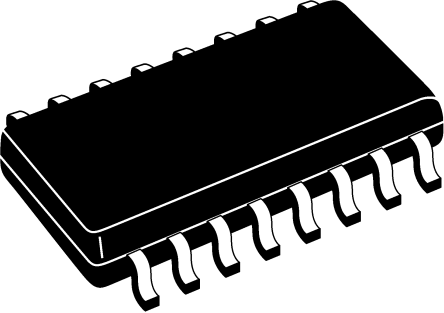

Image is for your reference only,please check specifications for details

SG2524DR - TI
Manufacturer:
TI
ManyChip's Part#:
MC13860929
Category:
PWM Controller IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SG2524DR PWM Controller, 2Outputs, 8V-40V supply, 18V/50mA out, 722kHz, SOIC-16
Stock Locations:
Availability:
119 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SG2524 and SG3524 devices incorporate all the functions required in the construction of a regulating power supply, inverter, or switching regulator on a single chip. They also can be used as the control element for high-power-output applications. The SG2524 and SG3524 were designed for switching regulators of either polarity, transformer-coupled dc-to-dc converters, transformerless voltage doublers, and polarity-converter applications employing fixed-frequency, pulse-width modulation (PWM) techniques. The complementary output allows either single-ended or push-pull application. Each device includes an on-chip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, and current-limiting and shutdown circuitry.

Show

SG2524DR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	722 kHz
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Voltage	18 V
Output Current	50 mA
Number of Positions	16 Position
Quiescent Current	8.00 mA
Number of Regulated Outputs	2 Output
Rise Time	200 ns
Switching Frequency	450 kHz
Topology	Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Duty Cycle	45 %
Maximum Duty Cycle	45 %
Fall Time	100 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage (Max)	40 V
Supply Voltage (Min)	8 V
Input Voltage	40 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-25℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
