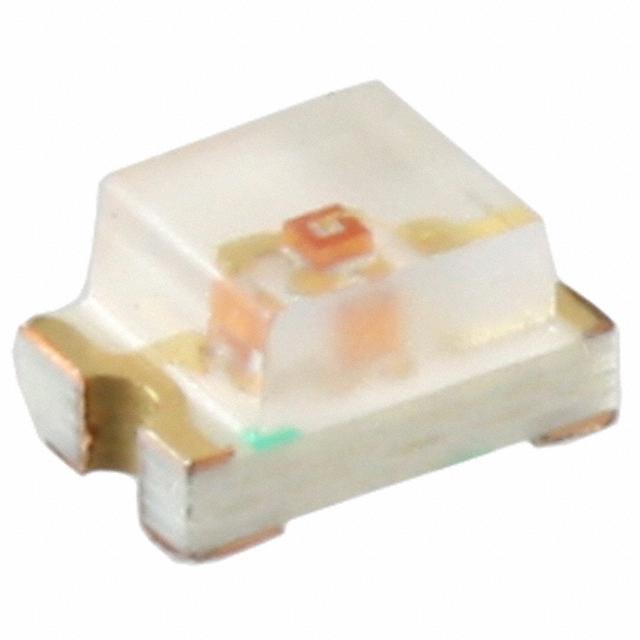

Image is for your reference only,please check specifications for details
- SM0805GCL - Bivar
-
Manufacturer:Bivar
-
ManyChip's Part#:MC19600966
-
Category:Based LED
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:LED; SMD; 0805; Green; 575nm; 3.6mcd; Water Clr Lens; 130Deg Viewing Angle; Low Current
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Bivar SLP Series Right Angle Light Pipes**
- The SLP series from Bivar are a family of right angle light pipes. These rigid light pipes are made from a clear polycarbonate material. They are available with a 3 mm round lens with either a domed or flat face. The SLP light pipes are mounted onto the PCB using push-fit lugs in close proximity to the LED.
SM0805GCL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Forward Voltage | 1.9 V |
| Wavelength | 574 nm |
| Luminous Intensity | 3.6 mcd |
| Viewing Angle | 130° |
| Peak Wavelength | 575 nm |
| Power Dissipation | 78 W |
| Test Current | 2 mA |
| Forward Current | 2 mA |
| Maximum Forward Voltage (Max) | 2.3 V |
| Forward Current (Max) | 30 mA |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Power Dissipation (Max) | 78 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 1.10 mm |
| Color | Green |
| Lens Color | Transparent |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
