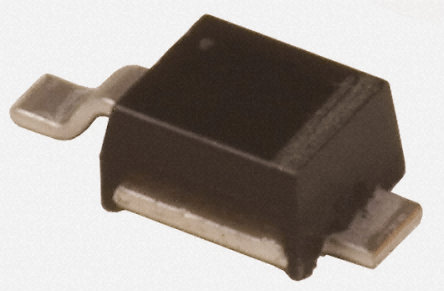

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features • Transient Voltage Suppressor • High Peak pulse power:200 W (10/1000 µs ) 1000 W ( 8/20 µs) • Stand-off voltage range 5 to 24V • Unidirectional types • Low clamping factor VCL/VBR • Fast response time • 1.0mm overall component height

Show

SM2T18A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Capacitance	500 pF
Power Rating	200 W
Breakdown Voltage	17.1 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	200 W
Clamping Voltage	26 V
Max Repetitive Reverse Voltage (Vrrm)	16V
Test Current	1 mA
Max Breakdown Voltage	17.1 V
Peak Pulse Power	200 W
Min Breakdown Voltage	17.1 V
Reverse Breakdown Voltage	17.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150 ℃
	Show
Size-Length	2.05 mm
Size-Width	2.05 mm
Size-Height	1.15 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
