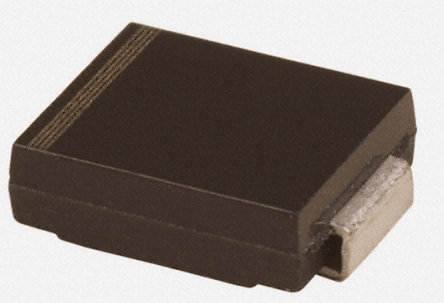

SM30T33AY - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC59394658
Category:
TVS Diode
Package:
DO-214AB
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS SM30T33AY TVS Diode, Transil SM30TY Series, Unidirectional, 28V, 50V, DO-214AB, 2Pins
Stock Locations:
Availability:
100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.28

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Transil SM30TY series TVS Diode designed to protect automotive sensitive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605. The planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide reliability and stability over time.
13 to 33V Stand off voltage range
Unidirectional and bidirectional types
2200W (10/1000µs) High power capability at Tj max
-55 to 150°C Operating junction temperature range

Show

SM30T33AY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Power Rating	3000 W
Breakdown Voltage	31.1 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	3 kW
Clamping Voltage	50 V
Test Current	1 mA
Max Breakdown Voltage	34.3 V
Peak Pulse Power	3000 W
Min Breakdown Voltage	31.1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	7.15 mm
Size-Width	6.25 mm
Size-Height	2.45 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
